Specially designed for Barrier Free Application Conforms with ANSI A156.2 , Grade 1. Exceeds 800 000 cycles.
3 Hour list UL R25096
Push in and turn button function. Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble. Removable thru bolt design available.
Coil compression springs provide great strength and durability.
Full length lever handle with 3/8" return.
UL 3 Hour Rated (Grade 1) 1/2" Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
Individual spring on each side to prevent lever sag, maintain reliability, reduce maintenance.
Specially designed for Barrier Free Application Conforms with ANSI A156.2 , Grade 2. Exceeds 400 000 cycles
3 Hour list UL R25096
Push in and turn button function. Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble. Removable thru bolt design available.
Coil compression springs provide great strength and durability.
Full length lever handle with 3/8" return.
UL 3 Hour Rated (Grade 1) 1/2" Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
Individual spring on each side to prevent lever sag, maintain reliability, reduce maintenance.
A Heavy Duty commercial quality deadbolt that provides a positive deterrent to forced entry. The cylinder recesses into the door to resist blows attempting to move the lock.
3 Hour List UL R25246
ADA Ergonomic thumb turn.
Steel mounting plate.
2-1/2" dia solid metal one-piece design exceeds ANSI Grade 2 Security against hammer and crowbar prying attacks.
1" (25mm) deadbolt with hardened steel core exceeds ANSI Grade 2 Security against kick-in and saw attacks.
Sturdy, all steel
latch case and mechanism.
WIDTH 36"

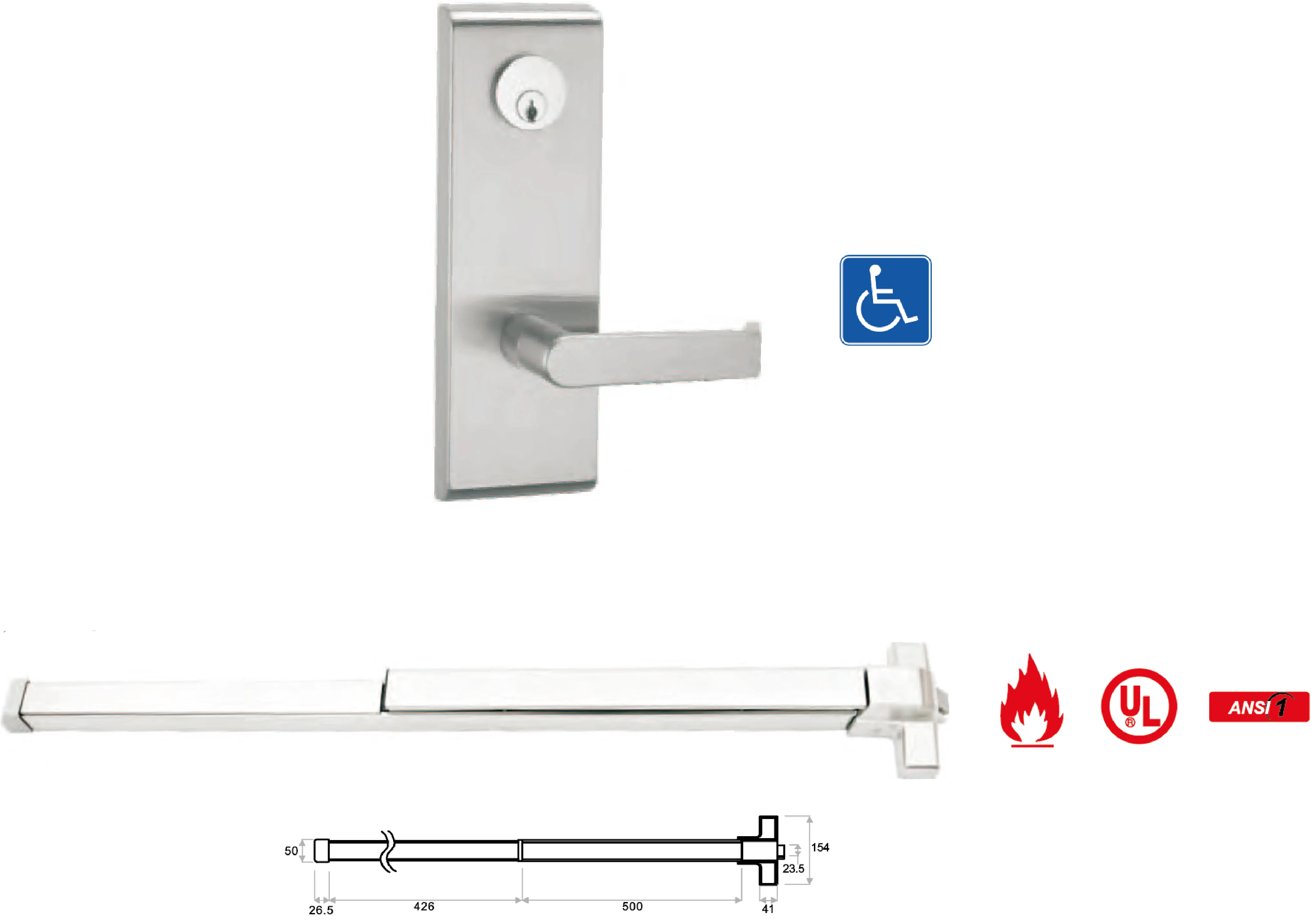

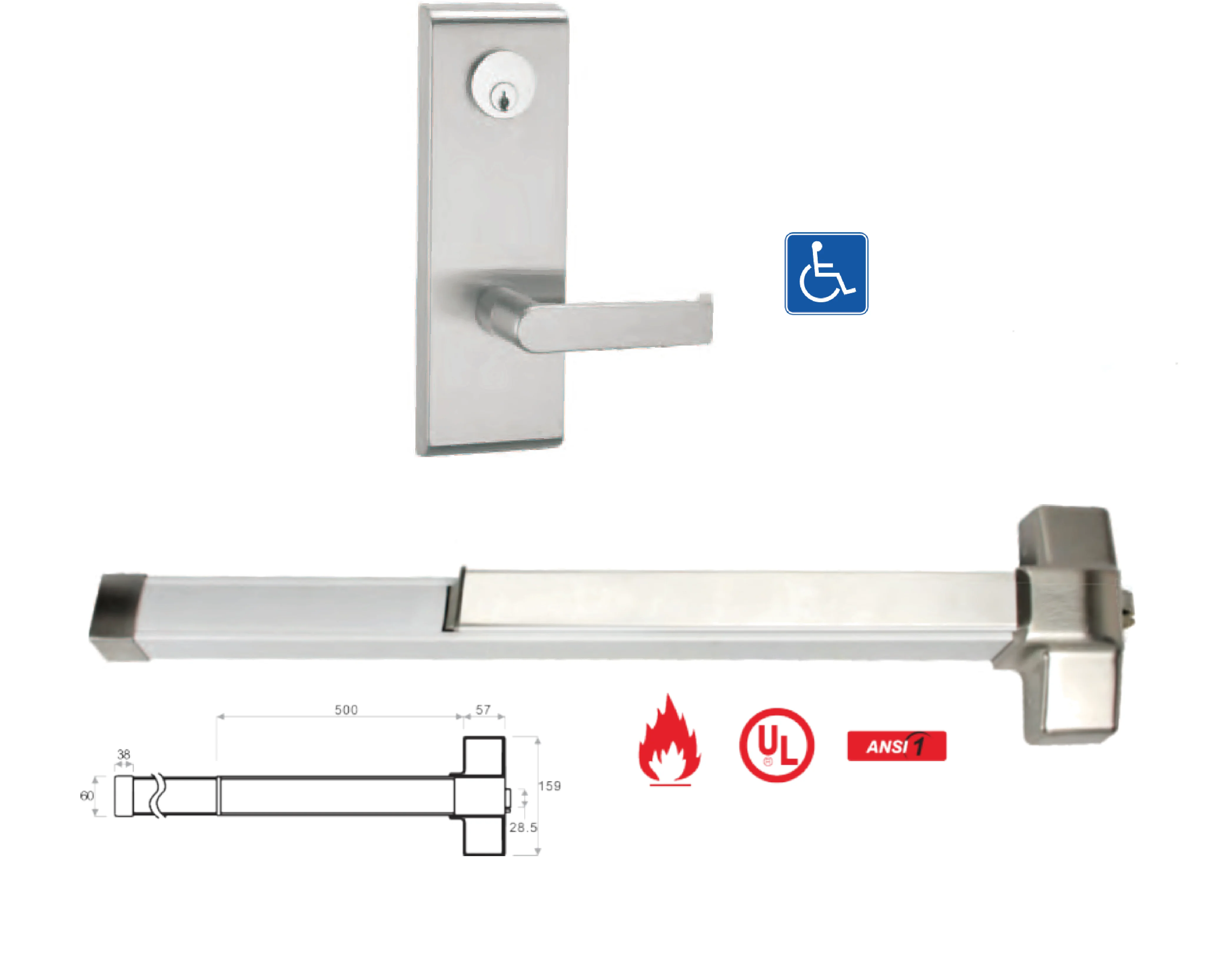

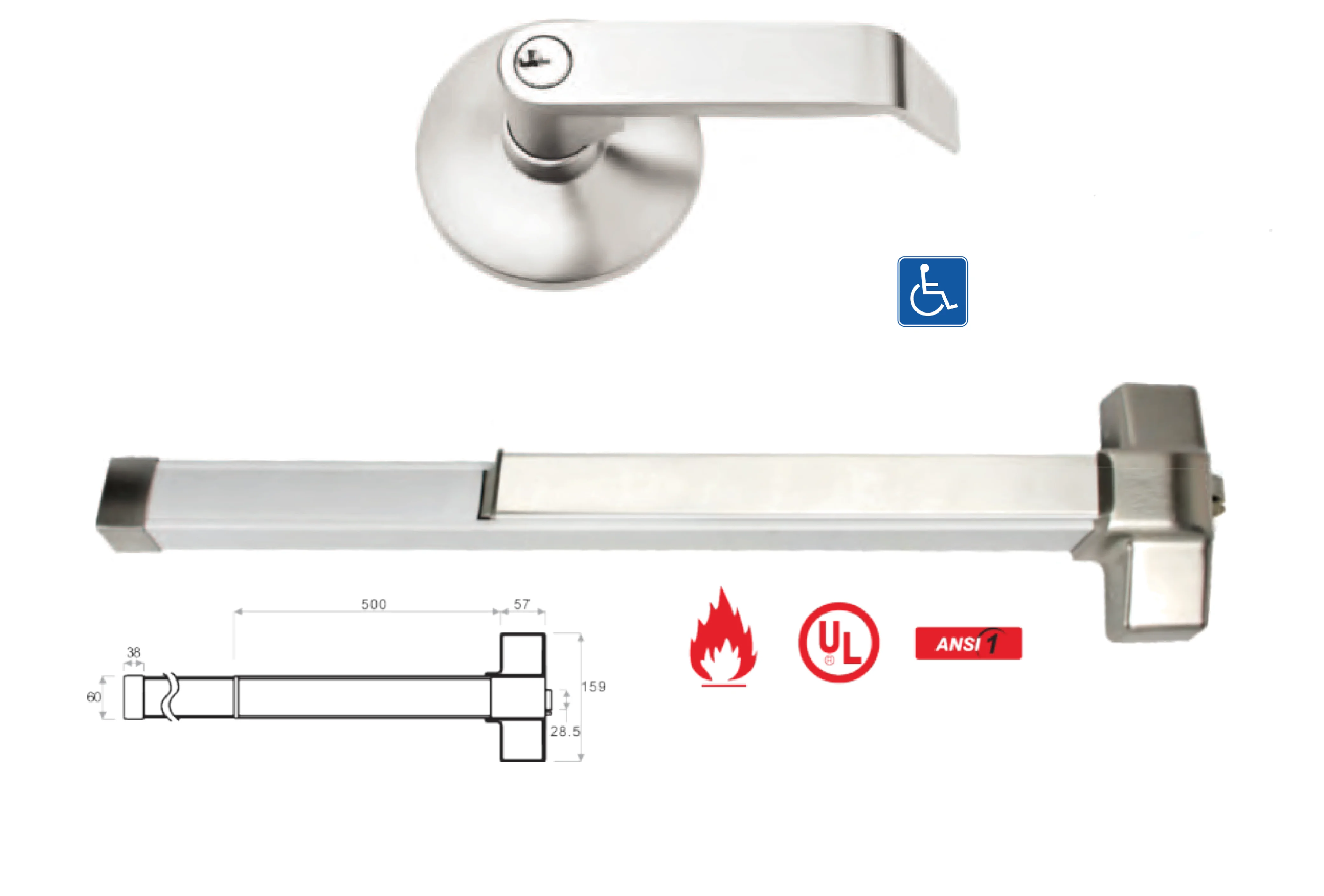

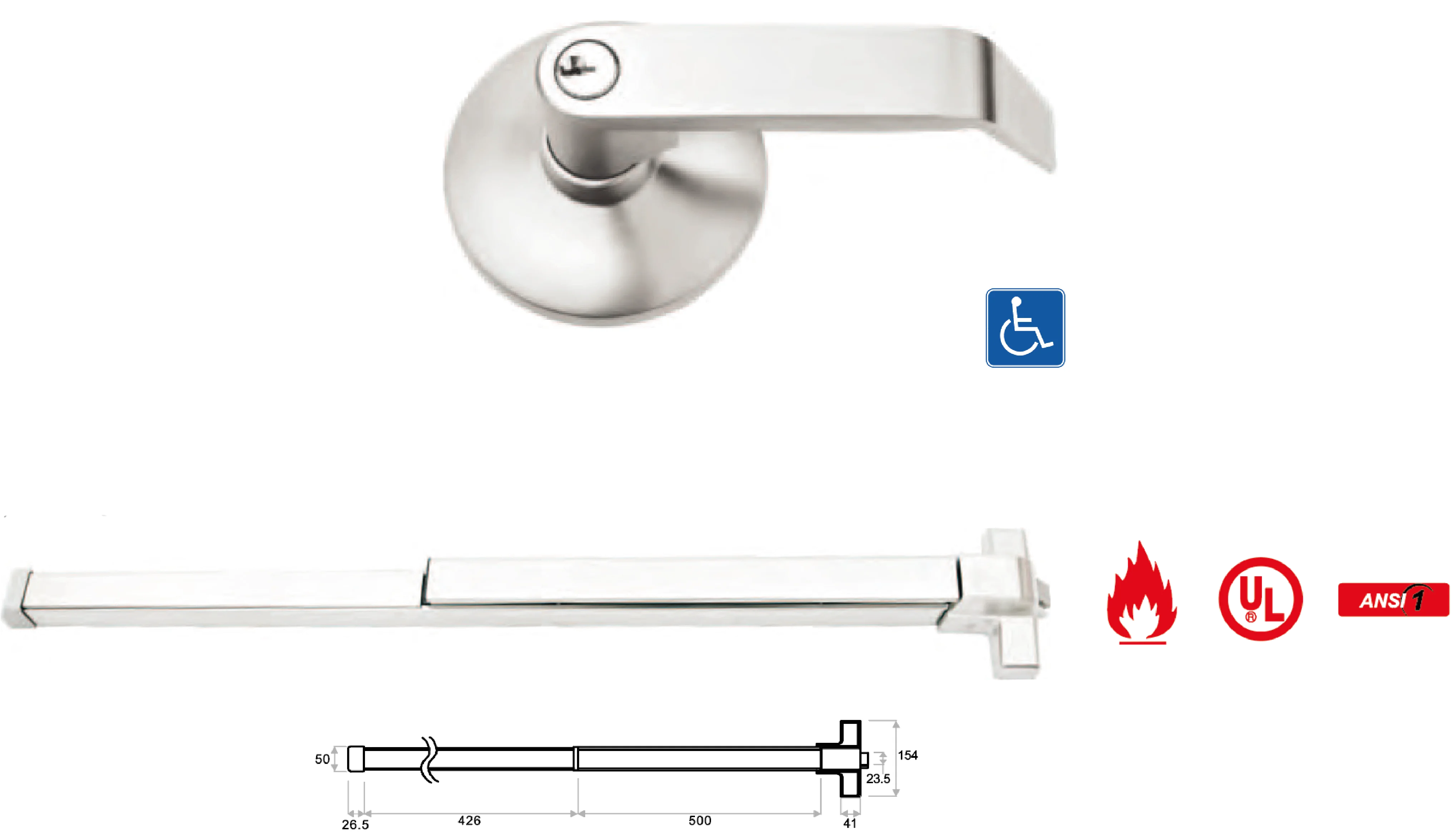

Fire Rated Exit Device, Rim Type, single leaf door.
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 800MM as a standard, could be customized
Color: Alum as a standard, could be customized
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH 48"
Fire Rated Exit Device, Rim Type, single leaf door.
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 1044MM as a standard, could be customized
Color: Alum as a standard, could be customized
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH 36"
Fire Rated Exit Device, Rim Type, Double leaf door.
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 800MM as a standard, could be customized
Color: Alum as a standard, could be customized
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH 48"
Fire Rated Exit Device, Rim Type, Double leaf door.
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 1044MM as a standard, could be customized
Color: Alum as a standard, could be customized
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH: 36"
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length or Full length
Material: Heavy gauge steel or 304 stainless steel
Length: 800MM as a standard, could be customized
Color: Silver painted or stainless steel as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH 48"
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length or Full length
Material: Heavy gauge steel or 304 stainless steel
Length: 1045MM as a standard, could be customized
Color: Silver painted or stainless steel as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
TRIM
Non hande/4d Grade 1, Cylindrical body hardened steel, Heavy duty tailpiece For 1-3/4" and 2-1/4" doors
Rose diameter 3-1/2", lever length 43/4", Fits 161 cutout Patented Clutch function
Finishes: 26D, 32D, US3, US4
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
Apply to single leaf door
Conforming to U.L. 10C and ANSI/BHMA A156.3-(2008) Grade 1.
WIDTH 36”
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 800MM as a standard, could be customized
Color: Alum as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
WIDTH 48”
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 1044MM as a standard, could be customized
Color: Alum as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
WIDTH 36”
Fire Rated Exit Device, Rim Type, Double leaf door
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 800MM as a standard, could be customized
Color: Alum as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
WIDTH 48”
Fire Rated Exit Device, Rim Type, Double leaf door
Type: Rim type, Half length
Material: Extruded alum body, 304 stainless steel push plate
Length: 1044MM as a standard, could be customized
Color: Alum as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
WIDTH 36”
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length or Full length
Material: Heavy gauge steel or 304 stainless steel
Length: 800MM as a standard, could be customized
Color: Silver painted or stainless steel as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
Fire Rated Exit Device, Rim Type, single leaf door
Type: Rim type, Half length or Full length
Material: Heavy gauge steel or 304 stainless steel
Length: 1045MM as a standard, could be customized
Color: Silver painted or stainless steel as a standard, could be customized
Accommodates wood and metal doors with thru bolts standard
Match with outside access device like cylinder, trim and lever.
Apply to door for fire protection, smoke ventilation.
TRIM
Heavy duty handle, Classroom Function - Outside lever locked and unlocked by Key.
Material: Stainless steel Finish: satin polish
Escutcheon Plate Width: 75mm
Escutcheon Plate Height: 230mm
Lever Projection: 51mm
Lever Length: 125mm
Lock Cylinder: Standard Schlage C Keyway Supplied with 3 keys
ADA Compliant
Strength and Durability
Fully wrapped heavy-gauge steel case protects against door edge attacks
All-metal zinc dichromate-plated working parts
Inside lock case protects electronic components
Two-piece anti-friction tongue reduces wear and tear
Outside and inside trim thru-bolted together and through the door.
Security built in
Hub blocking plate protects lock against spindle manipulation
Spring-loaded fusible link provides fail secure mode in case of fire
Inside lever applied by screwless shank mounting -no exposed trim mount screws
Adaptable To Your Application
Universal lock case 30 functions in one case
Floating mounting tabs automatically adjust to fit a beveled door edge
Field-reversible handing without opening lock case
External spring cages allow for simple trim retrofit
Strength and Durability
Fully wrapped heavy-gauge steel case protects against door edge attacks
All-metal zinc dichromate-plated working parts
Inside lock case protects electronic components
Two-piece anti-friction tongue reduces wear and tear
Outside and inside trim thru-bolted together and through the door.
Security built in
Hub blocking plate protects lock against spindle manipulation
Spring-loaded fusible link provides fail secure mode in case of fire
Inside lever applied by screwless shank mounting -no exposed trim mount screws
Adaptable To Your Application
Universal lock case 30 functions in one case
Floating mounting tabs automatically adjust to fit a beveled door edge
Field-reversible handing without opening lock case
External spring cages allow for simple trim retrofit
America Style Designed, Heavy Duty for Commercial Doors.
UL Certificated, 2 Million Cycles in Endurance
Precise Cast Iron Body & Forged Steel Arm, Hold Open Arm Optional.
Adjustable Closing & Latching Speed.
Adjustable Back-Check, Delay Action Optional.
Precision Heavy Duty Rack (Piston) & Pinion Gear, Needle Bearing.
Decorative Plastic Cover & Stainless Steel Cover Optional.
Barrier Free, Lower opening resistance for the handicapped / Elderly.
America Style Designed, Heavy Duty for Commercial Doors
ANSI 156.4 Grade 1, Two Million Cycles in Endurance
Adjustable Closing & Latching Speed
Adjustable Back-Check, Delay Action Optional
Precision Heavy Duty Rack (Piston) & Pinion Gear, Needle Bearing. Optional Full cover & Slim cover
Barrier Free, Lower Opening Resistance for the handicapped/elderly
Multi-size, 1-6
Recommended type for Fire Door, UL 10C Certified
Meet with ANSI 156.4 Grade 1, 10 years Guarantee 2 Million Life Cycles
Multi-size, Adjustable Spring force from 1-4, 3-6
Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
Needle Bearing
Optional Delay Action and Slim/Full Plastic Cover
ADA: 5014 with Barrier Free (BF) Function for elderly/ handicapped
Universal application. Non-handed for standard, top jamb or parallel arm installation.
